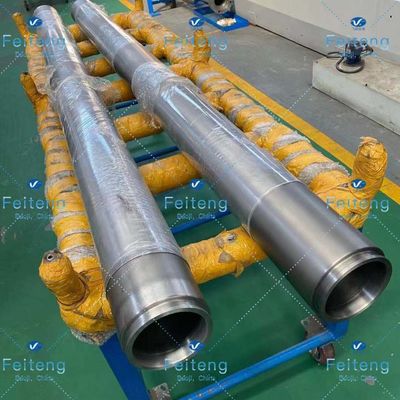

High Melting Point Niobium Tube Target ID125mm Seamless Tube

Place of Origin Baoji, Shaanxi, China
Brand Name Feiteng
Certification GB/T19001-2016 idt ISO9001:2015; GJB9001C-2017
Model Number Niobium Tube Target
Minimum Order Quantity To be negotiated
Price To be negotiated
Packaging Details Vacuum package in wooden case
Delivery Time To be negotiated
Payment Terms T/T
Supply Ability To be negotiated
Product Details
Size φ155*φ125*2000 Model Number Niobium Tube Target
Packaging Vacuum Package In Wooden Case Certification GB/T19001-2016 Idt ISO9001:2015; GJB9001C-2017
Brand Name Feiteng Place Of Origin Baoji, Shaanxi, China
High Light

Niobium Tube Target 155mm


Niobium Tube Target 125ID


High Melting Point Seamless Tube

Leave a Message
Product Description

Niobium Tube Target Vacuum Coating Target 155OD*125ID*2000 Seamless Tube

 Item name

 Niobium Tube Targets

 Size  φ155*Iφ125*2000
 Packaging  Vacuum package in wooden case
 Port of place  Xi'an port, Beijing port, Shanghai port, Guangzhou port, Shenzhen port

Other Product

Titanium Tube Target
Niobium tube Target
Gr2 Tube Target
Seamless Tube
Titanium Seamless Tube
titanium seamless pipe
ASTM Tube Target
Ti Tube Target
ITO Tube Target

Niobium is a gray metal, melting point 2468℃, boiling point 4742℃, density 8.57g/cm3. Niobium is a lustrous gray metal with paramagnetism. High purity niobium metal has high ductility but hardens with increasing impurity content. Its outermost shell configuration is very different from that of the other five. The same phenomenon occurs with the front and back elements ruthenium (44), rhodium (45) and palladium (46). Niobium exhibits superconductor properties at low temperatures. Its critical temperature of 9.2K at standard atmospheric pressure is the highest of any single superconductor. It also has the highest magnetic penetration of any element. Niobium is one of three simple Class II superconductors, the other two being vanadium and technetium. The purity of niobium metal greatly affects its superconductivity.
Niobium has a very low cross section for thermal neutrons and is therefore of considerable use in the nuclear industry.

Niobium is stable in air at room temperature, and is not completely oxidized in oxygen at red heat. It is directly combined with sulfur, nitrogen and carbon at high temperature, and can form alloys with titanium, zirconium, hafnium and tungsten. Does not interact with inorganic acids or bases, and is insoluble in aqua regia, but soluble in hydrofluoric acid.
Niobium metal is extremely stable in air at room temperature and does not interact with air. Although it has a higher melting point (2468°C) in its elemental state, its density is lower than that of other refractory metals. Niobium also resists various kinds of erosion and can form a dielectric oxide layer.

The coating target is a sputtering source that forms various functional films on the substrate by magnetron sputtering, multi-arc ion plating or other types of coating systems under appropriate technological conditions. To put it simply, the target material is the target material of high-speed charged particles bombardment. When used in high-energy laser weapons, different power densities, different output waveforms and different wavelengths of laser interact with different targets, different killing and destruction effects will be produced. For example, evaporative magnetron sputtering coating is heated evaporation coating, aluminum film, etc. Change different target material (such as aluminum, copper, stainless steel, titanium, nickel target, etc.), can get different film system (such as super hard, wear resistant, corrosion resistant alloy film, etc.).


Small volume
Light weight
High temperature oxidation resistance
The corrosion resistance
